300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs

Name: 300W Thermoelectric Recirculating Liquid Chiller Series For Industrial Needs
Brand: Adcol
Price: 1 USD

Quality 300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs for sale

Brand Name : Adcol

Model Number : ARC300

Certification : ISO9001 , CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T , Paypal

Supply Ability : 100Pcs/Month

Delivery Time : 3 - 4 weeks

Packaging Details : Solid carton packaging

Cooling capacity, Watt : 297

Heating Capacity，Watt : 300-600

Current, Amperes, 115VAC (230VAC) : 3.9(2.0)

Input power, Watts : 450

Fluid capacity, mL : 350

Weight, kg : 16

Maximum flow rate, LPM : 6

Input voltage, VAC : 100-240

Humidity，RH% : ≤85% RH

Frequency, Hz : 50/60

Compliance : UL61010-1/IEC61010-1 EN 61326-1:2006 EN 61000-3-3:2008

Controller accuracy, °C : ± 0.10

Temp. stability, ℃ : ± 0.05

Contact Now

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

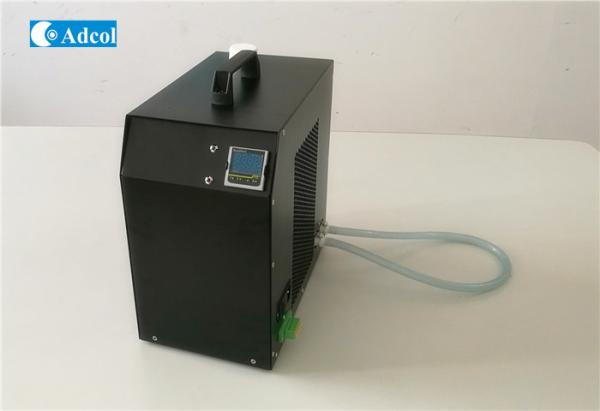

300W Thermoelectric Recirculating Liquid Chiller

1.Product Introduction

The ARC Series is a bench top re-circulating chiller that offers dependable, compact performance by controlling the temperature of a coolant in a liquid circuit.
The coolant is re-circulated using a pump with high MTBF. Heat from coolant is absorbed by a heat exchanger and dissipated thru high density heat sinks equipped with brand name fans.
The thermoelectric modules are custom designed to achieve long life operation. The unit is regulated with an easy to use digital temperature controller and is housed inside an aesthetic sheet metal casing.
Also the chiller can providethe heating function to keep the circle system at some Constant temperature point in the range.

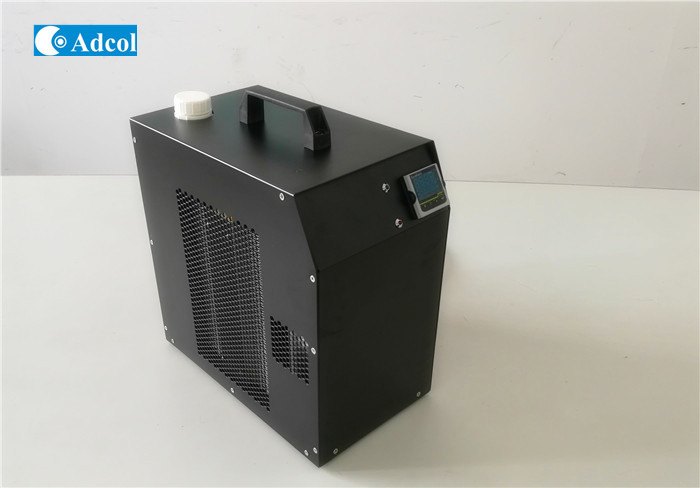

300W Thermoelectric Recirculating Liquid Chiller-- Series For Industrial Needs

2.Standard Features

Fast cooling and heating
Easy to operate
Environmentally friendly and refrigerant-free
Quiet
Programmable Digital Temperature Controller/ Auto-tune of PID control terms
System Error Monitor and alarm
Fluid inlet and outlet quick disconnect
High reliability

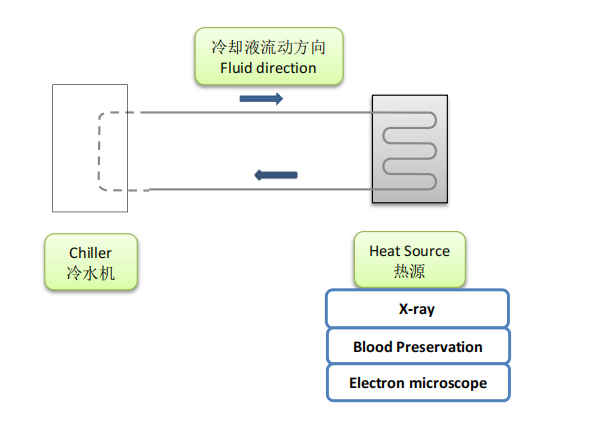

3. Typical Application

Medical Imaging Systems
Medical Lasers
Photonics Laser Systems
Industrial Instrumentation
Laboratory Testing

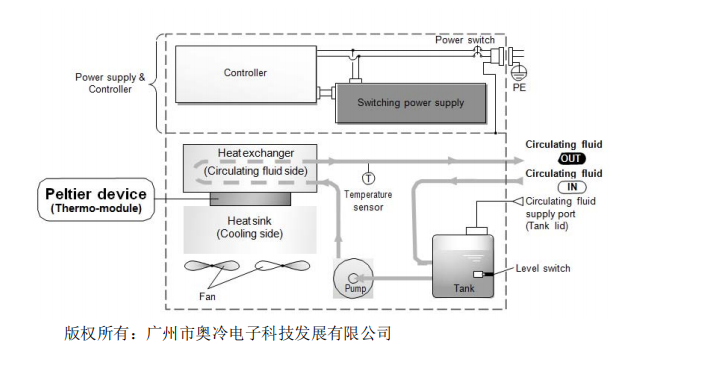

4. Structural Schematic

5.Cooling Capacity

Delta T =T ambient – T liquid – Degree C;

Cooling Capacity Qc – W

Liquid: Pure Water with current rate of Alcohol

ST: Standard unit, cooling only

6.Heating Capacity

Delta T’=T liquid – T ambient – Degree C;

Heating Capacity Qh - W

Liquid: Pure Water

HT: with Heater by reverse TE module Connection

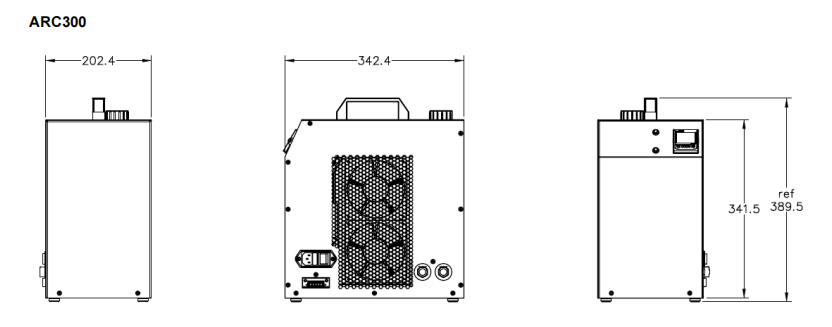

7.Dimension(mm)
